Tech Info
Fits 2007 – Current Jeep Wrangler JK Models 2wd / 4wd applications
2 Door Models sit 1/2″ – 3/4″ taller than 4 door models, but still remain level
Front drive shaft required for proper front driveline clearance (ICON Part #22014 [12-UP] / #22016 [07-11]).
For optimized axle centering add the ICON front and rear Jeep JK adjustable pan rod bars (ICON Part #21020 [Front] / #21025 [Rear]).
Compatible with ICON 22019 hydraulic bumpstop system.
Wheel & Tire Fitment Info
OEM Wheels & Tires: Yes
Aftermarket Wheels: 4.5″ Backspace
Aftermarket Tires: 35″ tall x 12.50″

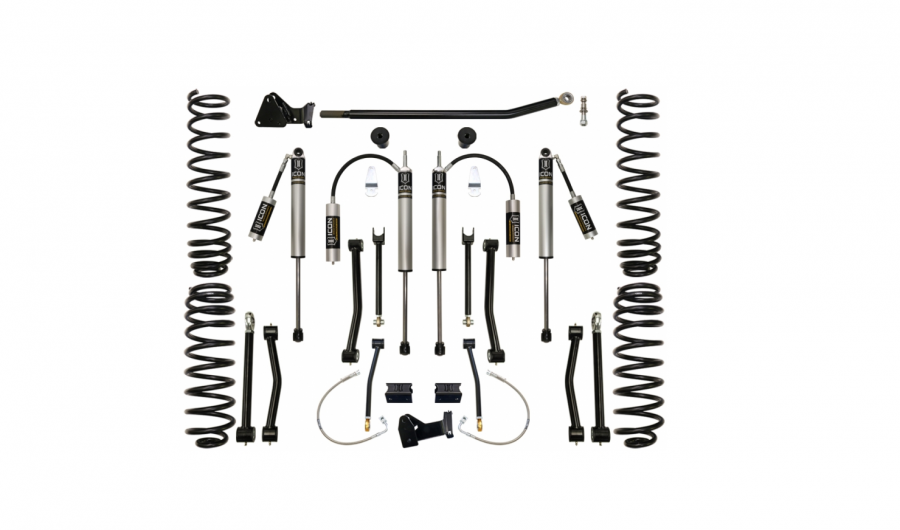

System Components
24010 (QTY – 1) Jeep JK 4.5″ Front Dual Rate Spring Kit (Pair)22015 (QTY – 1) Jeep JK 4.5″ Rear Dual Rate Spring Kit (Pair)21010 (QTY – 1) Jeep JK 4.5″ Lift Front Box Kit (track bar drop / high steer components / bump stop spacer / hardware)21000 (QTY – 1) Jeep JK 4.5″ Lift Rear Box Kit (track bar bracket / sway bar links / bumpstop spacer / brake line / hardware)21031 (QTY – 1) Jeep JK Front Lower Fixed Link Kit21036 (QTY – 1) Jeep JK Front Upper Adjustable Link Kit21041 (QTY – 1) Jeep JK Rear Lower Adjustable Link Kit21046 (QTY – 1) Jeep JK Rear Upper Fixed Link Kit21031 (QTY – 1) Jeep JK Rear Upper Fixed Link Kit26517R (QTY – 2) Jeep JK 2WD & 4WD 4.5″ Lift Remote Reservoir Front Shock – 2.0 Aluminum Series26518R (QTY – 2) Jeep JK 2WD & 4WD 4.5″ Lift Remote Reservoir Rear Shock – 2.0 Aluminum Series
