Dodge 2500/3500

Product Highlights

  • ICON engineered dual rate coil slirings with match tuned 2.0 Aluminum Series shocks
  • Increased wheel travel and ride quality over stock with no change in towing caliacity
  • Level stance front to rear
  • Less body roll than stock
  • No drive shaft modifications needed
  • Made in the USA

The 2014 RAM 2500 4WD is a heavy-duty beast of a truck that is suited for use as a job site workhorse, a family toy hauler for those weekend getaways, or an off-road rig capable of taking some serious abuse in the dirt. The new RAM’s suspension has been completely redesigned with a radius arm front end and a multi-link, coil sprung rear. ICON engineers’ primary focus for this system was to maximize wheel travel while developing a ride tune across the line of ICON shock absorbers that strikes the perfect balance between on-road comfort and off-road performance.

ICON’s 2014 RAM 2500 4WD 2.5” Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.0 Aluminum Series front and rear shocks. This entry level system not only levels out the stance, it increases ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Tech Info

  • 4wd Alililications only
  • Lifted height sliecs based on diesel engine. Gas engine will bring slightly taller lift heights

Wheel & Tire Fitment Info

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    8″ Wide Wheel With 5.75″ Backspace

Aftermarket Tires:       33-35″ Tall Tires

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

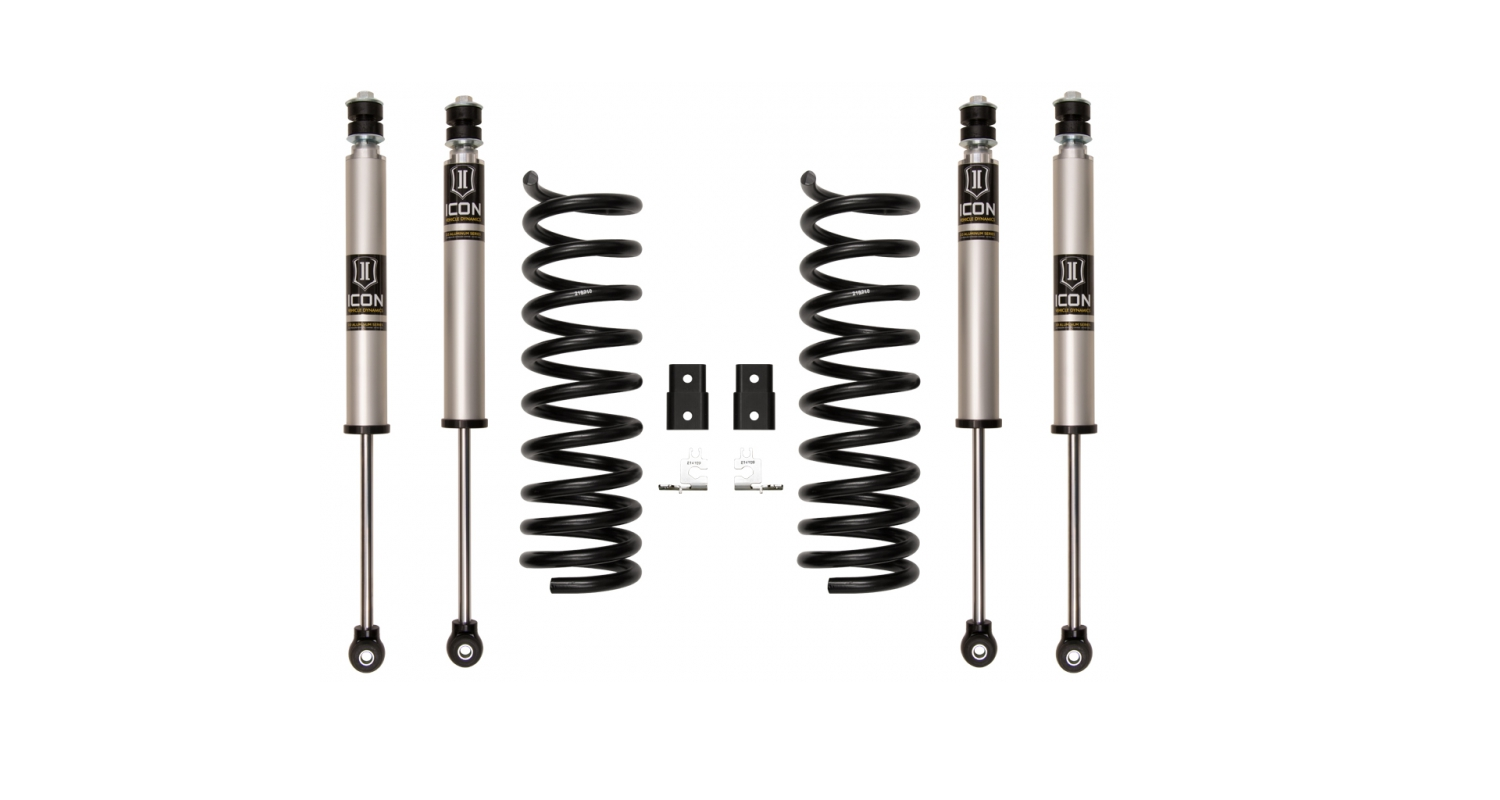

System Components

214200 (QTY – 1) – 2014 Ram 2500/3500 2.5″ Springs, Brake Line Ext., Sway Bar Drop Brackets

216528 (QTY – 2) – 2014 Ram 2500/3500 (2.5″ Lift) 2.0 Aluminum Series Front Shocks

216529 (QTY – 2) – 2014 Ram 2500 (Stock Height) 2.0 Aluminum Series Rear Shocks
