ICON Vehicle Dynamics 2007-UP GM 1500 2WD/4WD suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007-UP GM 2WD/4WD 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Tech Info
Fits both steel and aluminum suspension equipped models
Wheel & Tire Fitment Info
OEM Wheels & Tires: Yes
Aftermarket Wheels: 8″ – 9″ Wide Wheel With 5″ Backspace
Aftermarket Tires: 33″ x 11.50″ Tall Tires
(Larger Tires May Fit but Fender Trimming and Modifications will be Required)
System Components

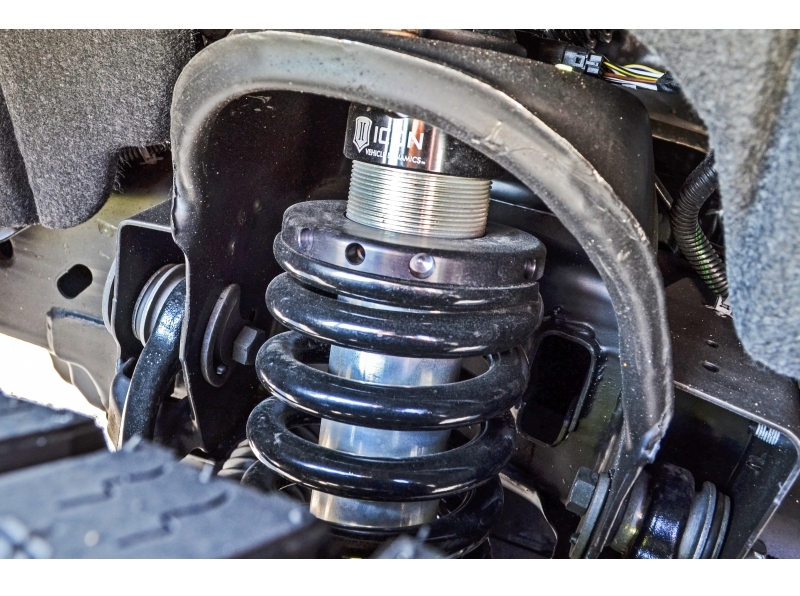

71505 (QTY.1) | 2007-UP GM 1500 2WD/4WD (1-3″ Lift) 2.5″ IFP Coilover Shocks
76526 (QTY.2) | 2007-UP GM 1500 2WD/4WD (0-3″ Lift) 2.0 Aluminum Series Rear Shock
